Mitsubishi EVO X Tuning

The OpenPort 2.0 is Tactrix's newest tuning tool hardware that is capable of communicating with most OBDII compliant vehicles using a standard J2534 interface. Combined with the EcuFlash software, the OpenPort 2.0 is capable of reflashing a large number of newer Subaru and Mitsubishi vehicles, and support for other cars is in progress.

We include a USB cable with each OpenPort, which is all the hardware you'll need unless you have one of the few vehicles that require a separate reflash adapter. For Subaru you'll only need a reflash adapter for the 2001 through 2005 WRX, but not STi, unless you're working on an early non USDM STi in which case you made need one of our WRX adapters. No other Subaru vehicles require reflash adapters including Forester, Baja, Legacy, or naturally aspirated Impreza models. For Mitsubishi, you'll need the adapter for most pre CAN vehicles which include the 5-9 Evo. Choose the adapter you need from the 'Reflash Adapters' drop down list on the right side of this page.

Designed, manufactured, assembled, and tested in San Francisco, USA

Have your car professionally tuned by Dino @ SpeedCircuit via email.

How it works

1. Purchase this item. In the comments field, list the year and trim of your Evo X, along with every modification to the car which could effect performance. This includes, but is not limited to engine modifications, wheels, tires, intake, exhaust, weight reduction, fuel system, etc.
2. Depending on the extent of your modifications, you may be required to pay additional fees for your tune. Items such as upgraded fuel systems, turbos, larger MAF housings, and so on will require much more time and calibration, hence, added cost.
3. You will be emailed a starter tune. You will be asked to download this tune to your ECU and log certain parameters in certain conditions.
4. Email us the logs, and you will receive an updated tune. The process of logging and updating your tune will continue until the tune is complete. An entry level tune will have a maximum of 15 versions for the above price.

Note: The tunes are the intellectual property of SpeedCircuit, and may not be shared with anyone without written consent. Furthermore, it is the responsibility of the owner to ensure that the car is mechanically sound. SpeedCircuit is not liable for any damages that may occur to your car. E-Tunes are done at your risk.

Requirements

• Laptop Computer
• Tactrix OpenPort 2.0 Cable w/ EvoScan OR a Cobb Accessport
• If you wish to use the ECUFlash method of tuning but do not have a Tactrix 2.0 cable, you can purchase one here.
• A knowledge and understanding of how a car works mechanically, in order to be able to track down potential issues.

• If it is suspected that your car has mechanical issues, you will be asked to address them or have a professional do so.  If you do not look into suspected mechanical issues, we will not be able to resume tuning your car until you do. It is not the responsibility of the tuner to diagnose any mechanical issues.

Recommended

• An Innovate or AEM Wideband O2 gauge with logging cable (required for all non-stock turbo tunes). If logging with a serial cable, we recommend a plugable USB to serial adapter which is available on amazon. If you are going to log via an analog connection, which is the only current way to log via Cobb AccessPort, see here for wiring instructions.
• A boost gauge
• Det cans to hear potential knock with.

What to log

• Wideband (only if you have a wideband O2 gauge installed)

• Throttle Position (TPS)

• RPM

• Load

• Boost

• Baro (if required by boost)

• Knocksum

• Timing Advance (ignition)

• Active WGDC Correction

• Odd Clutch Slip Speed (if tuning SST)

You may be asked to log more items as the tune progresses.

Please be sure to only do one full throttle pull per log. The pull should be from 3200-7000rpm unless specified otherwise.

Warning: E-Tuning requires that the driver of the car be aware of potential issues that may arise during tuning. This may include the car running lean, overboosting, detonating, or any other mechanical issues. If something doesn't feel right, take your foot off the throttle immediately and end the pull. SpeedCircuit, LLC is not responsible for any damages your car may incur! If you are not comfortable with this, please visit us for an in-person tune.

Expect an average of one new tune file per week. This will vary based on both our schedule and how quickly you can provide logs for the most recent update to your tune. There may be times where we may be unavailable, so on occasion there may be weeks where we are not available for e-tuning.

If you're not familiar with how to set up your car or computer to log or flash tunes on your car, or you need help with diagnostics, please check the Phone Support option.

Note: Once an initial base map has been sent to you, there are no refunds.

This video explains our e-tuning process:

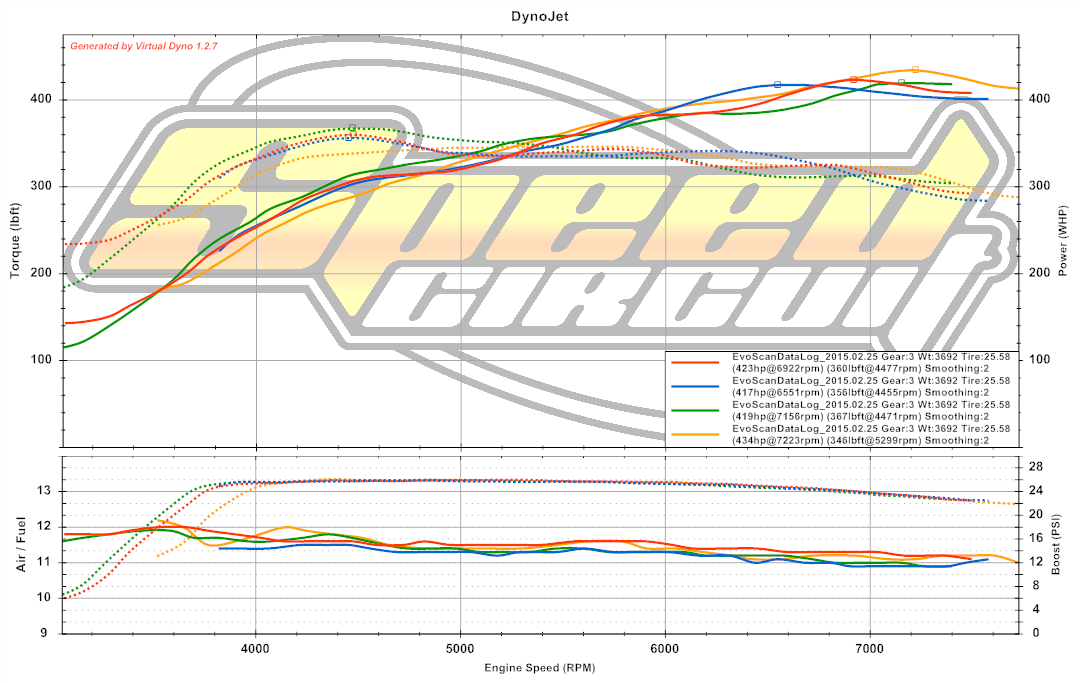

SpeedCircuit OTS Tune for bolt on cars, running stock injectors, and pump gas.

**NOTE** This is NOT a custom tune. This is our proprietary canned tune that we feel provides the best bang for your buck if you're looking for a bit more oomph out of your car, but can't necessarily go for a full custom tune. If you do choose our OTS tune, you will be able to upgrade to a custom tune for a small fee.

For all of our customers that have been asking for a cheaper and quicker solution, this is it! We all know that "other" OTS solutions don't offer the safety, power, or reliability that something more "custom" does, but the price is hard to ignore. What if there was option that could give you a good bit more power, without the cost of a full tune? You now have it with the SpeedCircuit OTS Tune! If you plan on staying stock turbo and just going with a FBO while saving money for a full tune this is for you.

Note: The tunes are the intellectual property of SpeedCircuit, and may not be shared with anyone without written consent. Furthermore, it is the responsibility of the owner to ensure that the car is mechanically sound. SpeedCircuit is not liable for any damages that may occur to your car. This is done at your risk. Also, no two cars are exactly the same. If the OTS tune does not run optimally on your car, you may be required to upgrade to an e-tune for better results.

Note: Once an OTS tune been sent to you, there are no refunds.

CURRENTLY ON BACKORDER!

The GrimmSpeed™ Mitsubishi EVO Boost Control Solenoid is designed to work with your factory computer (requires tuning). It will not reduce the life of your factory computer because it is designed to draw the same amount of power as the factory BCS but flows better and reacts faster. It plugs in and requires no splicing or soldering of resistors. With the included bracket you can bolt it in, plug in the connector, and start tuning for fast boost response, increased boost pressure and free up lots of power. Planning on returning the car to stock? Just reverse installation.

Why run an Electronic BCS over a Manual Boost Controller?

A MBC allows you to run higher than stock boost levels by preventing the wastegate from opening at its rated pressure. It does a great job at this but if boost is available under the MBC setting it will give you that full boost. So for instance, you set your MBC to 18psi because from 3000-6000rpm thats what you want. But then say you get detonation with 18psi when you are at 7000rpm unless you are below 16psi. With a MBC, you do not have this control so you are forced to run 16psi through the entire rev range. With an electronic boost controller you could run 18psi from 3000-6000 and 16psi at 7000rpm because you can tune the boost map in the ECU which will allow you to run the maximum amount of boost at every given rpm. This gives you more power throughout the range and better control. Revolutionizing the EVO boost solenoid market, we have created model specific install brackets that allow you to directly fit our Boost Solenoid into your EVO for a factory fit. No more Zip-tying! We give you the factory fitment you have been waiting for.

Staying with the OEM fitment theme, our Boost Solenoid uses a EVO style wiring harness so you can simply unplug your OEM solenoid and plug ours in. No more cutting the oem wiring and crimping wires together!

Also new to the EVO boost solenoid market, we have used ultra low-profile hose fittings to keep the unit as small and clean as possible. The hose fittings are nickel plated brass so you don't have to worry about them snapping off like the plastic hose fittings!

More Features:

• Users can use AN fittings with the solenoid.
• MAC Valve has completely custom made the valve for us(only MAC valve on the market to be custom made for automotive tuning use).
• Specifically designed by GrimmSpeed™ to work safely with the factory EVO ECU (requires tuning) and to reliably handle the vibrations and temperatures of your engine bay!
• The only direct “bolt in” design for the EVO. Direct bolt in mounting bracket and hardware included! (specify which model before ordering)
• Faster response and greater flow than any other valve out there. (by more than 10%!)
• Nickel plated brass fittings. (unlike the competitors failure prone plastic fittings)

Do you have a dual pump setup in your Evo X and wish you had a good way of triggering the secondary pump? Traditionally, people have used a hobbs switch for this purpose, and while it works, they can be unreliable and a bit clunky. It will often require another bung welded into the intercooler piping, extra wires and hoses running through the engine bay, and it's just not as tidy as most people would like it to be.

We teamed up with ripnet and came up with a great new solution. This kit allows tuners to trigger a secondary fuel pump based on load using ECUFlash. The kit includes a plug and play connector and a software patch for your ECUFlash ROM.

Requirements:

• Must use a supported ROM ID. The supported IDs are listed below.
• The car must run a 3 port boost control solenoid connected to the brown connector.
• The factory 2-port solenoid which uses the black connector must be unplugged.
• The car must be an Evo X, this specific kit will not work on a Ralliart
• A secondary fuel pump must be installed and wired up with a relay. The secondary pump should not automatically run when the car is started.

Here's how it works:

1. Plug the provided cable into the black connector which was originally connected to the black 2-port boost control solenoid.
2. Run the wires through the car to the relay which controls the secondary fuel pump.
3. Connect the blue wire to 86 on the relay and the red wire to 85.
4. Go to this website and generate a license key with the coupon code that you were provided. Note that this will require your VIN number.
5. Download the appropriate XML for your ROMID here.
6. Open the downloaded file in a text editor such as notepad.
7. Select all of text in the file by pressing CTRL+A, and copy it by pressing CTRL+C
8. In a text editor, open the XML file that matches your ROMID in following folder (note: this may require Administrator permissions on your PC): "C:\Program Files (x86)\OpenECU\ECUFlash\rommetadata\mitsubishi\evo"
9. Before the "</rom>" closing tag in the end of the file, paste the text from the downloaded file by pressing CTRL+V
10. Save the file. If the file won't save, be sure your have Administrator rights to that folder.

11. Launch ECUFlash and open your ROM file.
12. Scroll down until you see "Secondary Fuel Pump"
13. Open "Secondary Fuel Pump - Data", and press the "+" sign to make it say "Data Present".
14. Open "Secondary Fuel Pump - Function Call", and press the "+" sign to make it say "Data Present".
15. Open " Secondary Fuel Pump - License Key" and enter the License Key that you generated.
16. (Optional) Open "Secondary Fuel Pump - Intercooler Sprayer Enabled" and use the "+" and "-" keys to toggle whether or not you want that feature enabled. This will trigger the intercooler sprayer light on your dashboard to turn on when the secondary pump is being fired.
17. Open "Secondary Fuel Pump - Load vs RPM" - Set the load points for when you would like the secondary pump enabled at various RPMs.
18. Open "Secondary Fuel Pump - Load Hysteresis" to edit the hysteresis of the trigger.

Currently Supported ROM IDs:

• 52680022 (GSR 08-09)
• 56890013 (GSR 2011)
• 59580004 (GSR 13/15/FE)


Note: These will work with the Tephramod v1-3 versions of these ROMs (i.e. replacing the third to last number from 0 to 1, 2 or 3). For example, the Tephramod v3 ROM ID 52680322 will work the same as the standard ROM 52680022.

ROM IDs Currently in Development:

• 52690022 (MR 08-09)
• 55570006 (GSR 2010)
• 55580006 (MR 2010)
• 58010005 (GSR 2012)


Other ROMs can be added upon request.

Our bench flashing service can restore your bricked ECU or apply one of our canned tunes to get you going with your mods. If you're local we can remove the ECU for you if you prefer or you can mail it in and have it mailed back ASAP.

Have a bricked ECU? Don't have access to a Tactrix cable, but need a tune flashed? Need to downgrade your ECU to a different year or go from MR to GSR after a 5 speed swap? Well we have a solution for you! With our bench flashing service we can recover your bricked ECU and/or flash one of our canned tunes during the process. Now you don't have to panic when things go wrong or you cut corners and let your buddy give you a "custom tune."

Good for $1 towards a an e-tune update from SpeedCircuit.

If you have a previous e-tune from us, you can use this item to pay for additional tuning services, as needed. For example, if you had a previous tune with us and you changed your intake, it will require an update to your tune. Rather than starting from scratch, we can simply modify your existing tune.

To cover any dollar amount, simply change the quantity in your shopping cart.

The SpeedCircuit Mitsubishi EVO Boost Control Solenoid is designed to work with your stock ECU with tuning. 3 Port boost control solenoids offer superior boost control and a cleaner, simpler installation vs stock. It is Plug and Play (PnP) and replaces the factory solenoid which uses the brown connector. Returning to stock is as simple as plugging the factory solenoid and hoses back in and removing this unit.

Includes:

• 3 Port MAC Valve Solenoid

• 1/8" (3mm) Stainless Steel barbed fittings. (unlike the competitor's tiny fittings which are prone to leaks)

• Mounting Bracket
• 1/8" (3mm) Silicon Hose

Installation Instructions:

1. WARNING - Before installation, ensure that your tune is set up for this solenoid!
2. Remove the factory boost control solenoid that is connected to the brown plug
3. Mount SpeedCircuit boost control solenoid
4. Using some vacuum hose, connect the ports on the solenoid to the following areas:
1. Port #1 to a port on the intake pipe OR leave it open to the atmosphere
2. Port #2 to the wastegate
3. Port #3 to the compressor outlet

5. Connect the brown connector from the factory harness to the gray connector on the boost control solenoid
6. Double check all connections! Failure to to do can severely damage your engine!

The EBCS Pro Series 3-Port Electronic Boost Control Solenoid is designed to control todays high performance wastgates with it's ultra fast response and bomb proof design.

The PERRIN EBCS™ was the first and original aftermarket boost control solenoid, and now we have taken it one step further with the EBCS Pro™! The EBCS Pro™ is now made from higher quality materials (no plastic) includes improved fittings (again no plastic), rated to 250F (compared to just 150F) and even faster response time(twice as fast). We have explained why it's better than the old one, now why do you need this at all? Simple! Better boost control from your turbocharged engine!

The PERRIN EBCS Pro™ functions very different than the OEM solenoid. You will get faster boost response (more power down low), and the ability to hold more boost at higher RPM's. Who wouldn't want more boost, more power, and better response!

Since the EBCS Pro™ works differently than stock, it does require ECU re-tuning. Retail clients can contact us directly for most popular Subaru and Mitsubishi mapping needs. But, if you are a professional tuner, we provide a growing number of car specific tech tips to help get your own maps dialed so everyone can benefit from the PERRIN EBCS Pro™!

Aluminum & Stainless Steel Construction

No plastic here! Main valve body of the EBCS pro is made of corrosion resistant stainless steel with powder coated aluminum coil cover.

Direct Plug and Play Harness

Our OEM type male connector is specific to all Subaru and Mitsubishi applications.

Compatible with OEM ECU & Stand Alone ECUs

Custom made solenoid coil and valve specific to PERRIN specs, to work with OEM ECU. Will not throw check engine lights.

Direct Plug & Play Electrical Connector

Our OEM type male connector is specific to all Subaru and Mitsubishi applications. Includes additional connectors to allow universal applications.

Nickel Plated Connectors

High quality nickel plated brass fittings resist corrosion and will not break. For race professionals the EBCS will also accept AN fittings for the best connection possible.

Includes Everything You Need

Every EBCS Pro comes with 6ft of vacuum hose so you can route and mount your EBCS anywhere under the hood. The EBCS kit includes additional hardware for all applications.

Universal Mounting Bracket

The PERRIN EBCS Pro comes with a Laser cut stainless steel mounting bracket which will never corrode and provides a solid mounting surface. Designed specifically for popular Subaru & Mitsubishi applications.

The AccessPORT provides owners of 2008 Mitsubishi EVO X vehicles the ability to unlock power hidden within the factory ECU. Performance gains across the entire powerband can be quickly realized in the short time it takes to flash the vehicle’s ECU with the AccessPORT. No tools are required. No additional “piggy-back” hardware. No mailing the factory ECU across the country. No vehicle downtime. No waiting. Just plug the AccessPORT in, flash the ECU and enjoy the thrill of increased torque and horsepower!

The AccessPORT provides owners of 2008 Mitsubishi EVO X vehicles the ability to unlock power hidden within the factory ECU. Performance gains across the entire powerband can be quickly realized in the short time it takes to flash the vehicle’s ECU with the AccessPORT. No tools are required. No additional “piggy-back” hardware. No mailing the factory ECU across the country. No vehicle downtime. No waiting. Just plug the AccessPORT in, flash the ECU and enjoy the thrill of increased torque and horsepower!

Flashing the ECU for increased performance is just the start of what the AccessPORT is capable of. Set the AccessPORT to Performance mode to capture 0-60MPH times, ¼ Mile times and Trap Speeds. Switch over to Live Data and choose a gauge to monitor, such as; coolant temperature, intake air temperature, throttle position, intake cam advance, exhaust cam retard, MAF voltage, injector pulse width and many more. Select the integrated Datalogger to record multiple channels of data simultaneously. Or use it as a shift light that flashes the screen when a user defined rpm is reached. Use the Troubleshooting mode to diagnose issues by reading the factory codes and resetting the system once the issues have been resolved.

The AccessPORT can be used to eliminate separation anxiety for those times you are away from your car. Protect your investment when out on the town by quickly loading the Valet map to prevent the engine from revving above 3,200 rpm. Load the Anti-Theft map when you park to make it impossible to start. And in the event the car must be returned to the stock configuration, the AccessPORT can be completely removed and the ECU restored to its factory condition.

EVO X AccessPORT Features:

• Increase horsepower and torque with the touch of a button
• •Easy installation requiring no tools or computer skills
• •Display vehicle performance with 0-60MPH and 1/4 Mile clocks and Trap Speeds
• Monitor vehicle data such as MAF voltage, coolant temp, throttle position and much more.
• Built in Datalogging capability for multiple data channel recording.
• •Troubleshoot by viewing trouble codes and resetting ECU.
• •Valet and Anti-Theft modes help prevent abuse and theft
• •Upgrade firmware and download calibrated maps over the internet
• •Completely and easily uninstallable

On our car, we gained 72 extra horsepower to the wheels on a Mustang Dyno. Please note that Mustang Dynos tend to read about 10-13% lower than a standard DynoJet.

We achieved this on a hot summer day on 93 octane fuel. The car has zero driveability issues, and is much smoother and faster than stock. Simply put, it's a whole new car.

This is the perfect solution for someone who wants a stealthy yet serious modification to the car. Aside from the large power gains, it is virtually undetectable by anyone, including dealerships. If you're concerned with keeping your warranty intact, this is the product for you.

When ordering, Please be sure to specify the octane of fuel you will be running. Please specify your performance modifications as well. Also be sure to choose how aggressive you'd like your tune to be.

Mild - Good gain in power, however conservative and very safe. If you're not obsessed with making top performance numbers, this choice is for you. This tune runs richer air:fuel ratios and less aggressive timing.

Medium - Better gain in power, more aggressive. This runs less rich and more aggressive timing than Mild.

Spicy - Almost as aggressive as hot. Essentially this is a "Hot!" tune with slightly less timing.

Hot! - Best gain in power, however the most aggressive. This flash runs air:fuel ratios and timing numbers for optimal torque and horsepower. It is STRONGLY recommended that your car is equipped with a wideband air:fuel gauge if you are considering this version of the flash.

You have two options on how to attain this flash.

Option 1 - Make an appointment to have your car flashed, and come see us. Aside from your driving time, this option only takes about 20 minutes to complete.

Option 2 - Mail-in flash. Remove the ECU from your car (instructions to be posted shortly) and ship it to us. You may want to ship it via an overnight carrier as to have your car down for a shortly as possible. While all of our flashes are extensively tested to produce good gains without any negative consequences, it must be noted that they are to be run at the risk of the customer.
