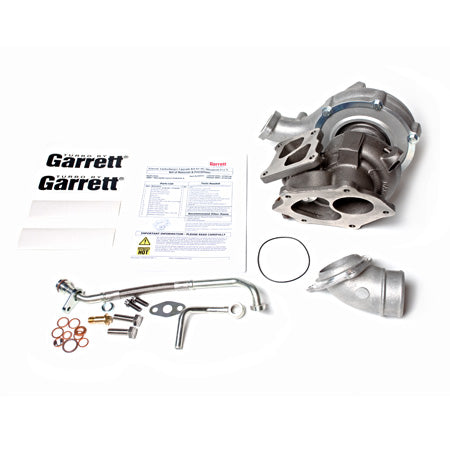

- GTX3576R dual ball bearing application specific turbocharger
- Inlet elbow
- Oil drain line
- Water lines
- Gaskets and necessary hardware
- Installation Instructions
Model Years: 2008 +
Engine: 2.0L 4B11 Turbocharged Inline 4

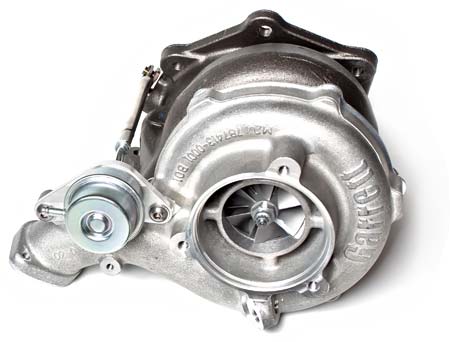

The Garrett® Evo X Turbo Upgrade allows you to push your AWD, rally-bred monster up to an estimated 650HP+ with the latest technology dual ball bearing GTX3576R. Each turbo has been meticulously designed to be a bolt-on upgrade with no fabrication, cutting or welding required.
This Evo X Turbo Upgrade features a specially designed twin-scroll turbine housing that mates up directly to the Evo X's stock exhaust manifold as well as the stock exhaust down pipe to allow for aftermarket exhausts to be used without worrying about fitment.
The turbine housing allows for the retention of the stock exhaust heat shield for better temperature control as well as a stealth look.
The ported shroud compressor housing reduces the occurrence of surge during operation and mates directly to the intake piping as well as the stock outlet position.
The Garrett® patented dual ball bearing center housing is standard on both turbocharger options for unmatched power handling and unbeatable response.
The Evo X Turbo Upgrade is a powerful, yet highly streetable enhancement to an already potent car.
|Compressor Wheel Inducer||58mm|
|Compressor Wheel Exducer||76.6|
|Compressor Wheel Trim||58|
|Compressor Housing A/R||0.60|
|Turbine Wheel Diameter||68.0mm|
|Turbine Housing A/R||0.94|
